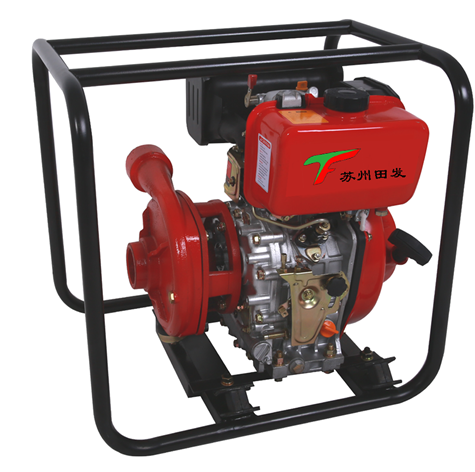

2-inch diesel pump +178

Engine modelCP2020-175-D5.5E
Inlet/outlet at size [ in ]2"/2"
Displacement Q.max[m3/h]30
Lift H.max[m(ft)]75(246)
Suction[m(ft)]6(19.68)
Speed[rpm]3600
Engine model178F/E
Rated power[KW(Hp)]4.0(5.5)
Displacement[ml]296
Starting systemRecoil starter/Electric starter
Fuel tank capacity[L(gal.]3.5(0.77)
Continuous working time[h]8
Overall dimension(LxWxH)[mm]580X490X570
Dry weight[kg]50
