Products Home >> Products

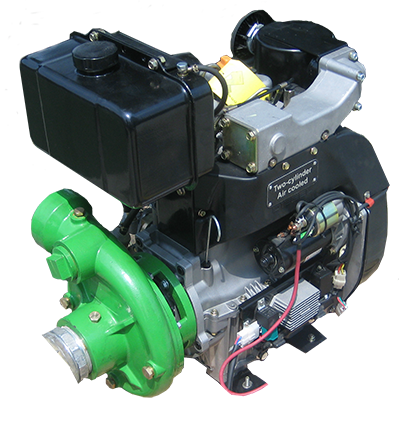

3X3+292

Engine modelCP3030-208-D20ES
Inlet/outlet at size [ in ]3*3
Displacement Q.max[m3/h]46
Lift H.max[m]98
Suction[m(ft)]7(22.96)
Speed[rpm]3600
Engine model292F
Rated power[KW(Hp)]14.5(20)
Displacement[ml]997
Starting systemElectric starter
Fuel tank capacity[L]6
Continuous working time[h]7.5
Overall dimension(LxWxH)[mm]510x630x530
Dry weight[kg]110
