Products Home >> Products
Motor propaganda

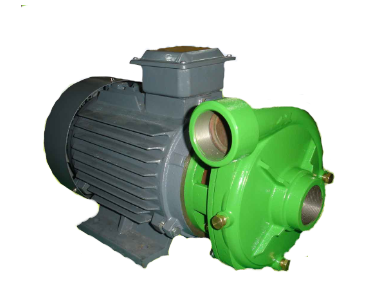

ModelCP3030-188-M10
PumpPump Type:水泵类型CentrifugalCentrifugal
Inlet Diameter:进水口口径33
Outlet Diameter:出水口口径33
Maximum Height (m)最大扬程7549
Maximum operating temperature(℃ :最高工作温度7070
Maximum flow (L.min)最大流量700633
MoterPower (hp):功率1010
Speed (RPM):转数36002900
Number of phases:  相数33
Motor Type:电机类型ElectricElectric
Voltage (v):电压208380
Frequency:频率60hz50hz
Power Kw:功率7.57.5

Weight (kg)
65/6765/67
Overall Dimension(MM)
600*310*350600*310*350
