Products Home >> Products

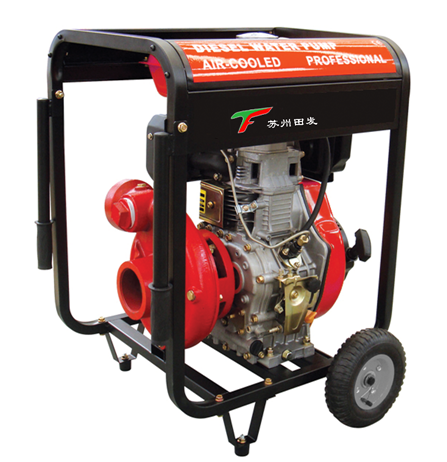

3 inch +186

Engine modelCP3030-188-D9E
Inlet/outlet at size [ in ]3"/3"
Displacement Q.max[m3/h]42
Lift H.max[m(ft)]78(256)
Suction[m(ft)]6(19.68)
Speed[rpm]3600
Engine model186FA/E
Rated power[KW(Hp)]6.7(9)
Displacement[ml]418
Starting systemRecoil starter/Electric starter
Fuel tank capacity[L(gal.]5.5(1.45)
Continuous working time[h]3.7
Overall dimension(LxWxH)[mm]580X490X630
Dry weight[kg]68


Engine modelCP3030-208-D12E
Inlet/outlet at size [ in ]3"/3"
Displacement Q.max[m3/h]42
Lift H.max[m(ft)]95
Suction[m(ft)]6(19.68)
Speed[rpm]3600
Engine model188FB
Rated power[KW(Hp)]9(12)
Displacement[ml]418
Starting systemRecoil starter/Electric starter
Fuel tank capacity[L(gal.]12.5(3.3)
Continuous working time[h]7.5
Overall dimension(LxWxH)[mm]580X490X630
Dry weight[kg]68
