Products Home >> Products

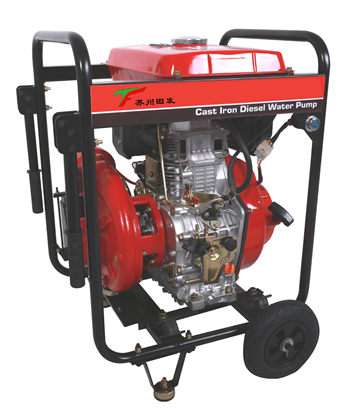

4X3+186F

Engine modelCP4030-150-D9E
Inlet/outlet at size[ in ]4"/3"
Displacement Q.max[m鲁/h]90
Lift H.max[m(ft)]55(180.4)
Suction[m(ft)]6(19.68)
Speed[rpm]3600
Engine model186FA/E
Rated power[KW(Hp)]6.7(9)
Displacement[ml]418
Starting systemRecoil starter/Electric starter
Fuel tank capacity[L(gal.]5.5(1.45)
Continuous working time[h]7.5
Overall dimension(LxWxH)[mm]580X490X630
Dry weight[kg]69
