Products Home >> Products

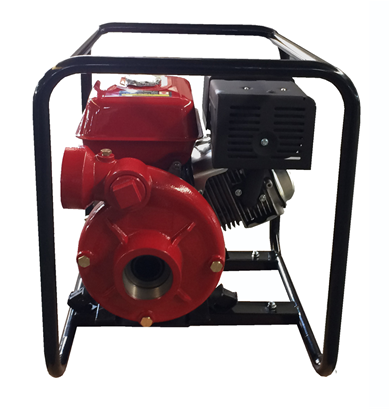

CP3030-188-G13

Engine modelCP3030-188-G13
Inlet/outlet at size [ in ]3X3
Displacement Q.max[m3/h]45
Lift H.max[m]80
Suction[m]8
Speed[rpm]3600
Engine modelAir-cooled,single,4-stroke
Rated power[KW(Hp)]13
Displacement[ml]389
Starting systemRecoil and hand-operated
Fuel tank capacity[L]6.5
Continuous working time[h]8
Overall dimension(LxWxH)[mm]625X475X535
Dry weight[kg]55
