Products Home >> Products

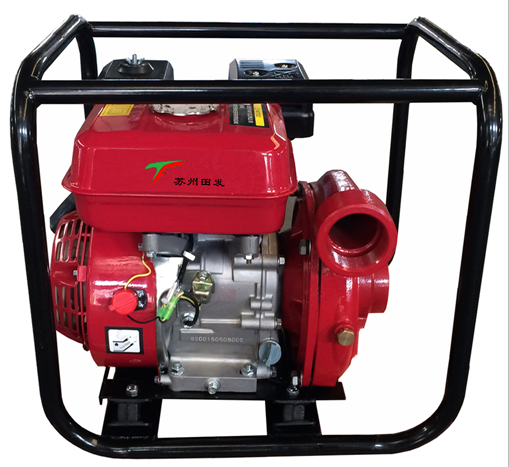

CP2020-175-G6

Engine modelCP2020-175-G6
Inlet/outlet at size [ in ]2X2
Displacement Q.max[m3/h]3
Lift H.max[m(ft)]70(360)
Suction[m]7
Speed[rpm]3600
Engine modelAir-cooled,single,4-stroke
Rated power[KW(Hp)]6.5
Displacement[ml]196
Starting systemRecoil and hand-operated
Fuel tank capacity[L]3.6
Continuous working time[h]8
Overall dimension(LxWxH)[mm]465X375X440
Dry weight[kg]33
