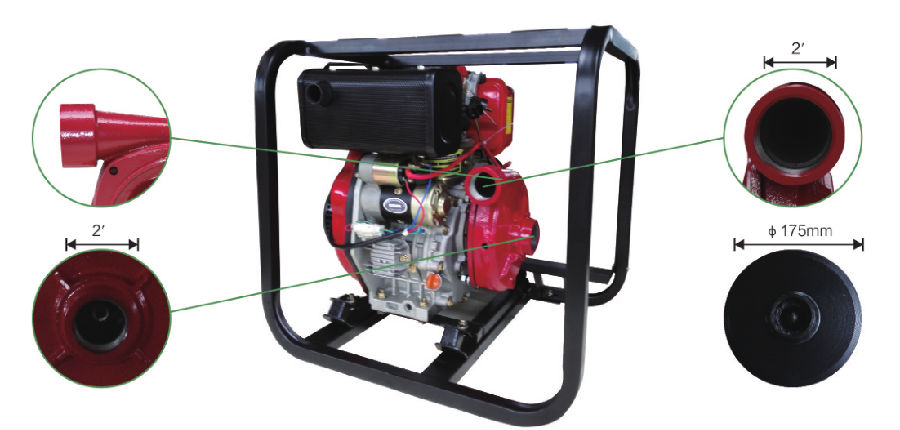

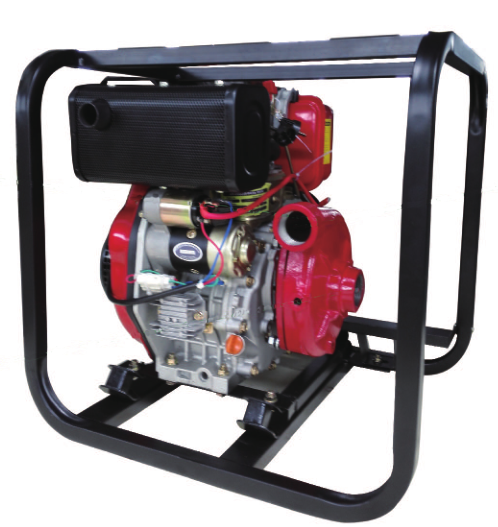

2X2-175High pressure cast iron pump



Model

DTF20-175

水泵尺寸Inlet/outlet at size [ in ]

2X2-175

最大流量Displacement Q.max[m3/h]

30

最大扬程Lift H.max[m]

75

最大吸程Suction[m(ft)]

7

转速Speed[rpm]

3600

柴油机型号 Engine model

178F

动力Rated power[KW(Hp)]

4.0(5.5)

排量Displacement[ml]

296

启动方式Starting system

手动或电启动/Recoil and hand-operated

油箱容积Fuel tank capacity[L]

3.5

持续工作时间Continuous working time[h]

8

外形尺寸Overall dimension(LxWxH)[mm]

580X490X570

重量Dry weight[kg]

42
