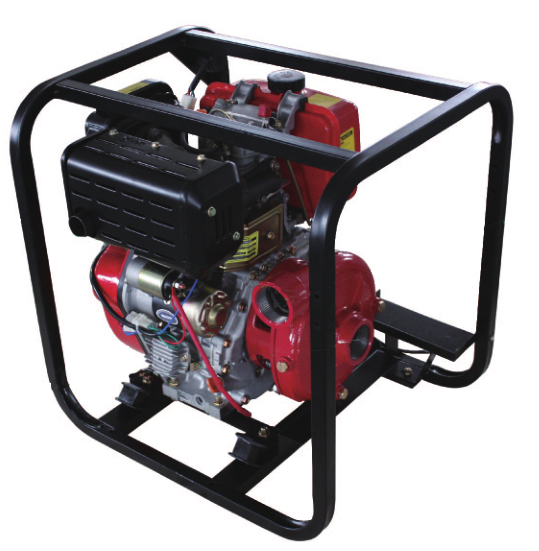

| 2X2-198High pressure cast iron pump | |
名称Model | DTF20-198 | 水泵尺寸Inlet/outlet at size [ in ] | 2X2-198 | 最大流量Displacement Q.max[m3/h] | 35 | 最大扬程Lift H.max[m] | 85 | 最大吸程Suction[m(ft)] | 7 | 转速Speed[rpm] | 3600 | 柴油机型号 Engine model | 186FA | 动力Rated power[KW(Hp)] | 6.7(9) | 排量Displacement[ml] | 418 | 启动方式Starting system | 手动或电启动/Recoil and hand-operated | 油箱容积Fuel tank capacity[L] | 5.5 | 持续工作时间Continuous working time[h] | 8 | 外形尺寸Overall dimension(LxWxH)[mm] | 580X490X630 | 重量Dry weight[kg] | 68 |
| |
|
|
