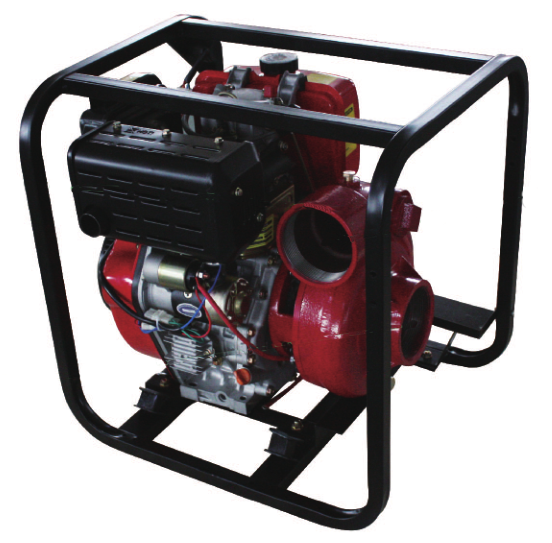

| 4X3-150High pressure cast iron pump | |

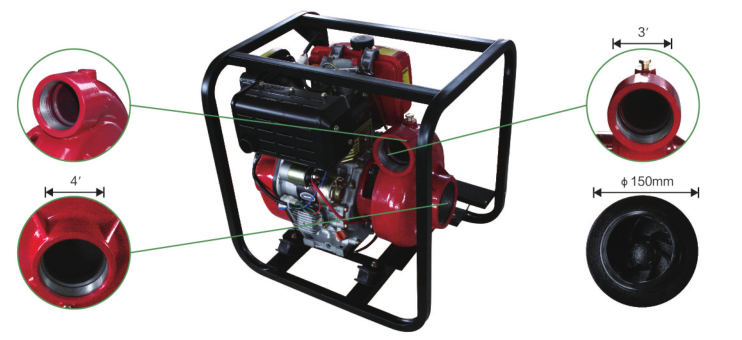

名称Model | DTF4030-150 | 水泵尺寸Inlet/outlet at size [ in ] | 4X3-150 | 最大流量Displacement Q.max[m3/h] | 96 | 最大扬程Lift H.max[m] | 42 | 最大吸程Suction[m(ft)] | 7 | 转速Speed[rpm] | 3600 | 柴油机型号 Engine model | 190F | 动力Rated power[KW(Hp)] | 9(13) | 排量Displacement[ml] | 477 | 启动方式Starting system | 手动或电启动/Recoil and hand-operated | 油箱容积Fuel tank capacity[L] | 5 | 持续工作时间Continuous working time[h] | 8 | 外形尺寸Overall dimension(LxWxH)[mm] | 580X490X630 | 重量Dry weight[kg] | 85 |
| |
|
|
