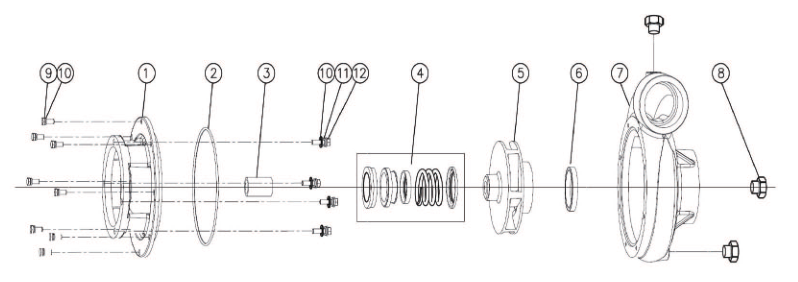

Installation Exploded view
Water pump - BY PURPOSE
Water pump - Powered by points
Pump test machine Pictures
Tow pump (pulley pump)
Waterless self - priming pump unit
Cast iron water pump
Video Show
Suzhou TIANFA Machinery CO.,Ltd
TEL:+86 512 86663975
Add:Qiangtang Village,Yang Cheng Hu Town,Xiang cheng District, Suzhou City,Jiangsu Province,China
Email:13912780590@139.com
28748746@qq.com
18915436819@163.com
Products Home >> Products

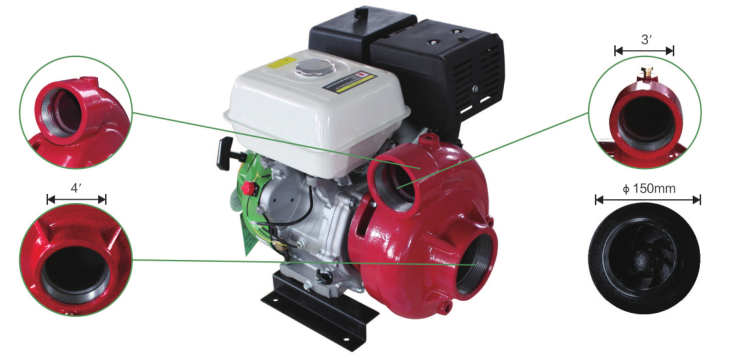

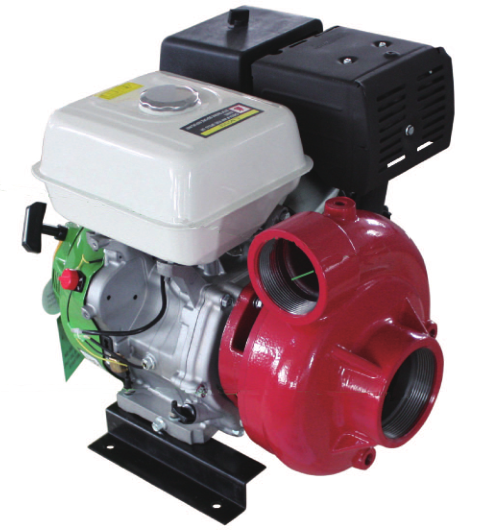

4X3-150High pressure cast iron pump

名称Model

GTF4030-150

水泵尺寸Inlet/outlet at size [ in ]

4X3-150

最大流量Displacement Q.max[m3/h]

96

最大扬程Lift H.max[m]

43

最大吸程Suction[m(ft)]

7

转速Speed[rpm]

3600

动力Rated power[KW(Hp)]

风冷4冲程汽油机Air-cooled,single,4-stroke

动力额定功率Rated power[HP]

13

排量Displacement[ml]

389

启动方式Starting system

手动或电启动/Recoil and hand-operated

油箱容积Fuel tank capacity[L]

6.5

持续工作时间Continuous working time[h]

8

外形尺寸Overall dimension(LxWxH)[mm]

625X475X535

重量Dry weight[kg]

62
