Products Home >> Products

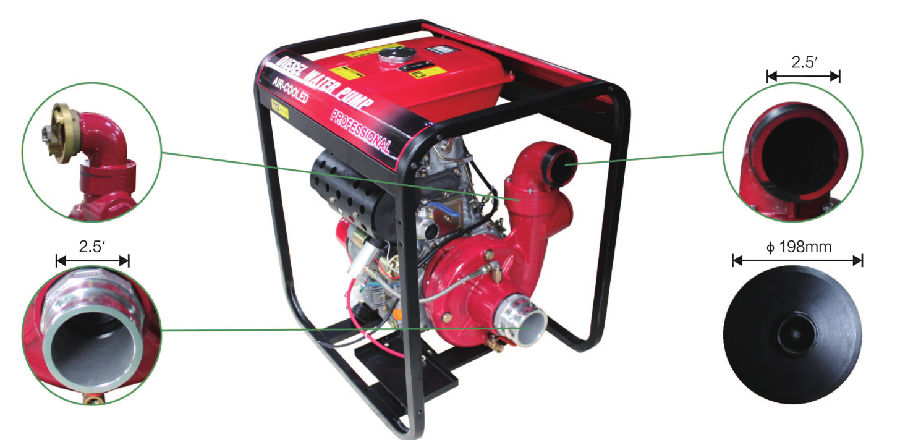

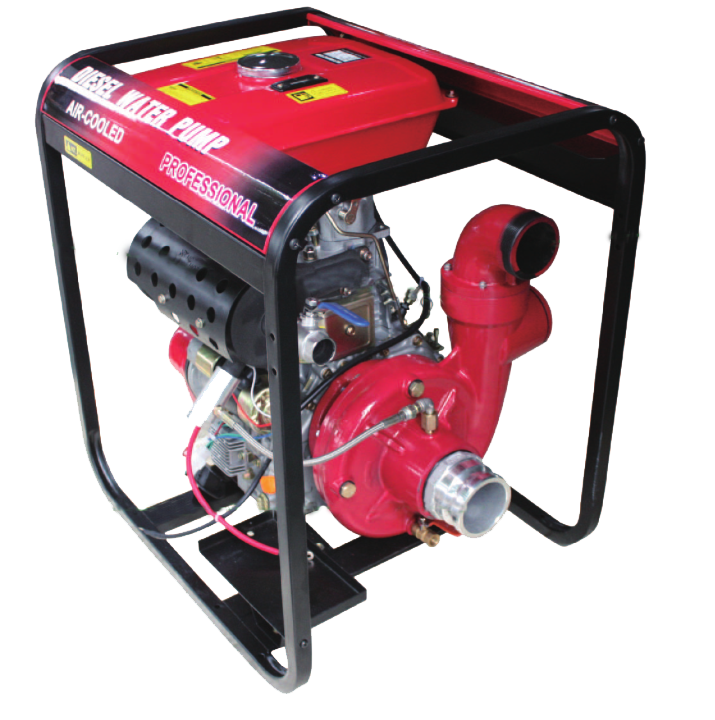

2.5X2.5-198Automatic water self - priming pump

名称Model

DTZ2525-198

水泵尺寸Inlet/outlet at size [ in ]

2.5X2.5-198

最大流量Displacement Q.max[m3/h]

38

最大扬程Lift H.max[m]

82

最大吸程Suction[m(ft)]

7

转速Speed[rpm]

3600

柴油机型号Engine model

188FB

动力Rated power[KW(Hp)]

811

排量Displacement[ml]

458

启动方式Starting system

手动或电启动/Recoil starter/Electric starter

油箱容积Fuel tank capacity[L]

5.5

持续工作时间Continuous working time[h]

8

外形尺寸Overall dimension(LxWxH)[mm]

590X500X600

重量Dry weight[kg]

75
